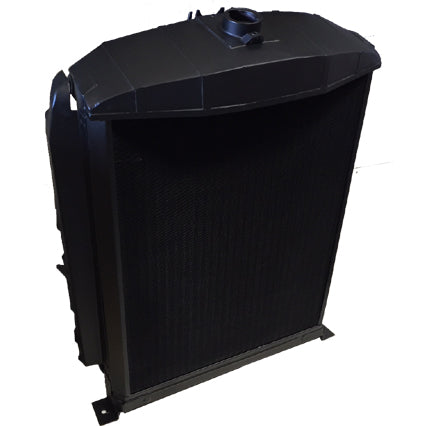

1935 Ford 1, 1-1/2, 2 Ton Truck Radiator Reproduction

1935 1-1/2 ton truck chassis is completely different from the 1/2 ton "commercial car"(pickup), although it shared the same cab, hood, grille and engine.

This radiator is intended as a drop in replacement for the 1935 Ford  1, 1-1/2, and  ton commercial [51-8005] produced in Dearborn, MI or Green Island, NY or Long, Modine or McCord supplied radiators.  It set-up for the flathead engine in its production year and includes the fan relief in the top header/rear of tank and the lower hose connection castings are formed metal and angle down.  Please indicate if you would like formed tube, use of your OE castings or newly re-casting pieces when ordering.  The tank will permit crank passage but a formed tank and bar for crank relief are only done on request

If you have modified or altered your vehicle in anyway, please order from the bespoke radiator section.  If you wish to restore your OE radiator using your OE tanks, brackets and/or castings please visit the restoration section of our website to begin the process.

1935 and 1936 Ford truck shells are often interchanged on vehicles but they have design differences. The side bracket depth and width are different but most obvious is the shell side section depth.  1935 is 6 1/2" and 1936 is ~8".  Please check before ordering.

Made in the USA
