Brassworks fan shrouds for Walker Radiators

Brassworks fan shrouds for Walker Radiators

fan shroud - provide the dimensions

$225.00

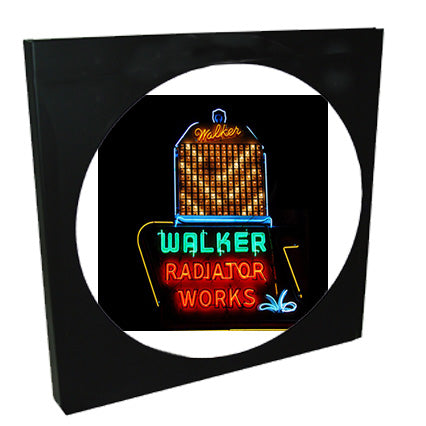

A few years ago we noticed an uptick in the number calls from people requesting our steel fan shrouds to be paired with Walker Radiators radiators. They have sinced closed their doors and people call now more than ever. If you need it, we'll build it.  The dimensions sheet belwo and part numbers may make it easier for you to order.

The missing piece is the depth from the mounting surface (radiator sidewall) to the first engine obstruction e.g. water pump pulley (or shaft), alternator, blower pulley etc. Email what you need over and determine the appropriate SPAL fan to maximize CFM and then...we'll get sketching.

Ours are made with steel, welds and rivets and polished brass or German silver.  Most are 225 but the cost can vary depending on how elaborate your imaginative design becomes.

Full Disclosure and/or Disclaimer: We have no affiliation with Walker Radiators or Johnson Radiators.

Year/Make model height width
1932 Chevy Z-512-1 Z-Series 23 16 7/8
1932 Chevy Z-AC512-1 Z-Series 23 16 7/8
1932 Chevy C-512-1 Cobra 23 17
1932 Chevy Chopped 16 17 3/8
1933 Chevy Master Z-510-1 Z-Series 22 16 7/8
1933 Chevy Master C-510-1 Cobra 22 17
1933 Chevy Master Z-Ac510-1 Z-Series 22 17
1933-35 Chevy Z-AC509-1 Z-Series 22 16 7/8
1934-35 Chevy Z-509-1 Z-Series 22 16 7/8
1934A-35 Chevy Z-Ac508-1 Z-Series 21 17
1934-35 Chevy C-509-1 Cobra 22 17
1934-35 Chevy Master C-Ac509-1 Cobra 22 17
1936 Chevy Z-505-1 Z-Series 23 16 7/8
1936 Chevy Z-Ac505-1 Z-Series 23 16 7/8
1936 Chevy C-505-1 Cobra 23 17
1937 Chevy Z-501-1 Z-Series 22 16 7/8
1937 Chevy Z-Ac501-1 Z-Series 22 16 7/8
1937 Chevy C-501-1 Cobra 22 17
1937 Chevy C-AC501-1 Cobra 22 17
1938 Chevy Z-Ac502-1 Z-Series 22 16 7/8
1938 Chevy Z-502-1 Z-Series 22 16 7/8
1938 Chevy Z-Ac502-1 Z-Series 22 16 7/8
1938 Chevy C-502-1 Cobra 22 17
1938 Chevy C-Ac502-1 Cobra 22 17
1939 Chevy Z-Ac503-1 Z-Series 22 16 7/8
1939 Chevy Z-503-1 Z-Series 22 16 7/8
1939 Chevy C-503-1 Cobra 22 16 7/8
1939 Chevy Z-Ac503-1 Z-Series 22 16 7/8
1939 Chevy C-Ac503-1 Cobra 22 16 7/8
1940-41 Chevy C-504-1 Cobra 22 16 7/8
1940-41 Chevy Z-504-1 Z-Series 22 16 7/8
1940-41 Chevy Z-Ac504-1 Z-Series 22 17
1946-48 Chevy C-513-1 Cobra 19 20
1946-48 Chevy Z-513-1 Z-Series 19 20
1946-48 Chevy C-AC513-1 Cobra 19 20
1946-48 Chevy Z-Ac513-1 Z-Series 19 20
1947-53 Chevy Truck Z-AC520-1 20 19 7/8
1947-53 Chevy Truck C-520-1 Cobra 20 20
1947-53 Chevy Truck Z-520-1 20 20
1954 Chevy Truck Z-514-1 Z-Series 21 19 7/8
1954 Chevy Truck Z-AC514-1 Z-Series 21 19 7/8
1955-59 Chevy Truck Z-Series 21 20 7/8
1955-59 Chevy Truck Z-519-1 Z-Series 21 20 7/8

1917-23 Ford Z-481-1 Z-Series 17 18 11/16
1917-23 Ford Z-481-1 Z-Series 17 18 11/16
1917-23 Ford C-481-1 Cobra 17 18 3/4
1917-23 Ford B-C-481-1 Cobra 17 18 3/4
1917-23 Ford B-Z-4811 Z-Series 17 18 3/4
1924-27 Ford Z-481-2 Z-Series 18 18 7/8
1924-27 Ford C-481-2 Cobra 18 19
1924-27 Ford B-Z-481-2 Z-Series 18 19
1924-27 Ford B-C-481-2 Cobra 18 19
1928-29 Ford Z-AC487-1 Z-Series 20 18 7/8
1928-29 Ford C-487-1 Cobra 20 19
1928-29 Ford C-Ac487-1 Cobra 20 19
1928-29 Ford B-C-487-1 Cobra 20 19
1928-29 Ford C-487-1 Cobra 20 19
1928-29 Ford BZ-487-1 Z-Series 20 19
1928-29 Ford Z-487-1 Z-Series 20 19
1928-29 Ford BC-Ac487-1 Cobra 20 19
1930-31 Ford Z-487-2 Z-Series 22 17 7/8
1930-31 Ford Z-AC487-2 Z-Series 22 17 7/8
1930-31 Ford Z-487-2 Z-Series 22 17 7/8
1930-31 Ford B-Z-487-2 Z-Series 22 17 7/8
1930-31 Ford C-487-2 Cobra 22 18
1930-31 Ford C-Ac487-2 Cobra 22 18
1930-31 Ford B-Z-Ac487-2 Z-Series 22 18
1930-31 Ford C-487-2 Cobra 22 18
1930-31 Ford B-C-Ac487-2 Cobra 22 18
1930-31 Ford B-C-487-2 Cobra 22 18
1932 Ford C-491-2 Cobra 22 17 1/4
1932 Ford B-C-Ac491-2 Cobra 22 17 1/4
1932 Ford C-Ac491-2 Cobra 22 17 1/4
1932 Ford B-C-Ac491-2 Cobra 22 17 1/4
1932 Ford C-Ac491-2 Cobra 22 17 1/4
1932 Ford Z-491-2-FH 22 17 3/8
1932 Ford Z-491-2 Z-Series 22 17 3/8
1932 Ford FHZ491-2 Chopped 16 17 3/8
1932 Ford Z-491-2 Z-Series 22 17 3/8
1932 Ford BZ491-2 Chopped 16 17     7/16
1932 Ford B-Z-491-2 Z-Series 22 17 1/2
1932 Ford B-Z-491-2 Z-Series 22 17 1/2
1933-34 Ford C-498-1 Cobra 22 17
1933-34 Ford C-Ac498-1 Cobra 22 17
1933-34 Ford Z-498-1 FH 22 17
1933-34 Ford C-498-1 Cobra 22 17
1933-34 Ford Z-Ac498-1 Z-Series 22 17
1933-34 Ford B-Z-498-1 Z-Series 22 17 1/4
1933-34 Ford Z-498-1 Z-Series 22 17 3/4
1933-34 Ford B-C-498-1 Cobra 22 17
1935 Ford C-488-1 Cobra 23 17
1935 Ford Z-488-1 Z-Series 23 17
1935 Ford Z-Ac488-1 Z-Series 23 17
1936 Ford C-AC494-1 Cobra 23 17
1936 Ford Z-494-1 Z-Series 23 17
1936 Ford Z-Ac494-1 Z-Series 23 17 1/8
1936 Ford B-Z-Ac494-1 Z-Series 23 17 1/8
1936 Ford B-Z-494-1 Z-Series 23 17 1/8
1936 Ford C-494-1 Cobra 23 17 1/4
1937-39 Ford Z-495-1 Z-Series 23 15 3/4
1937-39 Ford Z-495-1-FH 23 15 3/4
1937-39 Ford Z-AC495-1 Z-Series 23 15 3/4
1937-39 Ford B-Z-Ac495-1 Z-Series 23 15 3/4
1937-39 Ford Std Z-495-1 Z-Series 23 15 3/4
1937-39 Ford Std Z-495-1-FH 23 17.75
1938 Ford Delx Car, 1940 Truck/Car 497-1 20 21
1939 Ford Delx Car 497-1 Flathead 20 21
1939 Ford Delx Car/40-41 Truck Z-497-1 20 21
1939 Ford Delx/40-41 Truck B-Z-497-1 Z-Series 20 21
1939 Ford Dl, 1940 All B-C-497-1 Cobra 20 21
1939 Ford Dl, 1940 All, 1941 Truck C-497-1 20 21
1939 Ford Dl, 1940 All, 1941 Truck B-C-Ac497-1 Cobra 20 21
1939 Ford Dl, 1940-41 Truck B-Z-497-1 Z-Series 20 21
1939 Ford Dl, 1940-41 Truck Z-497-1 20 21
1941 Ford Deluxe C-496-1 Cobra 21 21
1941 Ford Deluxe B-C496-1 Cobra 21 21
1941 Ford Deluxe Z-Ac496-1 Z-Series 21 21
1942-47 Ford F100 BZAC-489-1 Z-Series 22 21
1942-47 Ford F100 BZ-489-1 Z-Series 22 21
1942-48 Ford C-493-1 Cobra 20 20
1942-48 Ford Z-Ac493-1 Z-Series 20 20
1942-48 Ford Z-493-1 Z-Series 20 20
1942-48 Ford B-Z-Ac493-1 Z-Series 20 20
1942-48 Ford C-Ac493-1 Cobra 20 20 1/8
1942-52 Ford F100 Z-489-1 22 21
1942-52 Ford F100 AC489-1 22 21
1953-56 Ford F100 Z-556-1 21 20 7/8
1953-56 Ford F100 BZ-556-1 Z-Series 21 22 3/4
1934 Street Beast C-498-1 CMC Cobra 20 17

We make to order. Please allow adequate time for us to build.

Build time estimates [August 2024]

Brass Model Ts 6-8 weeks

Black Model Ts FT 5-6 weeks - RT is 8 weeks

Model As 6-8 weeks

Heater cores 6-8 weeks

Model A and 32 Ford Street rods 8 weeks

Common street rods 15 weeks

Tricky customs & restorations 4-4.5 months

We appreciate your patience as we continue to recruit and train new fabricators.
