HC 56-56 Ford MODEL A

Regular price $329.00

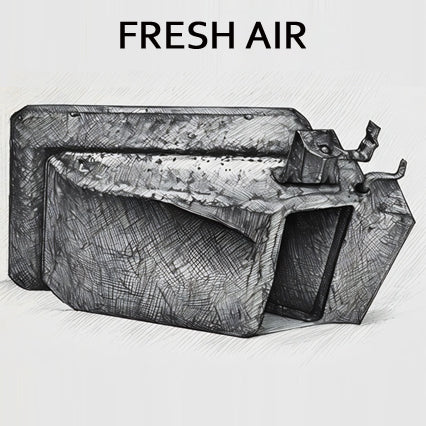

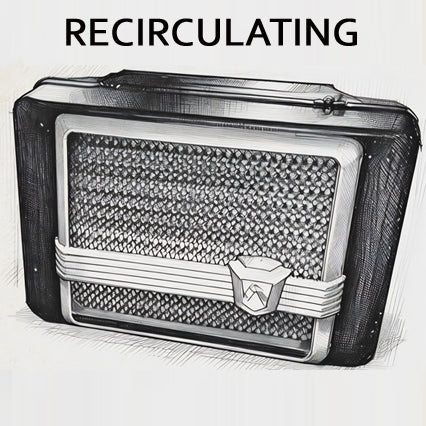

1953-1956 F Series Trucks may have either a recirculating or a fresh air heater core.  All trucks were plumbed to a vent however the recirculating heater core box blocked off the vent and the heater core is visible in the cab.  The Fresh Air box had an open vent and enclosed heater core.  Recirculating heaters were less expensive but it cannot draw outside air and gives no control of how much air is divided between the defogger and floor heat.

 Other information that may help identify your heater core/heater box

  • 54, 55, 56 had the same heater box
  • 53,54,55 blower motors were 6V, 56 were 12V
  • 53 pulled the fresh air from the louvers on the cowl, not from the front of the truck
  • 53-55 defroster hoses go over further towards the driver's side and uses 1.5" hoses
  • 56 uses 2" hoses up to defrost duct

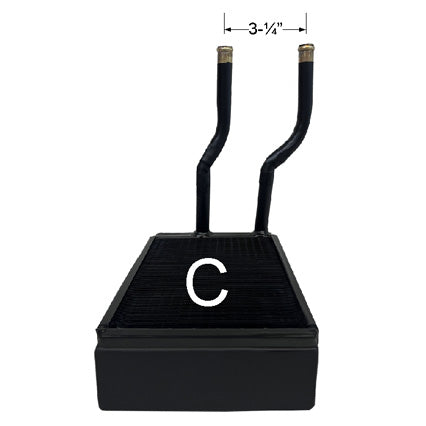

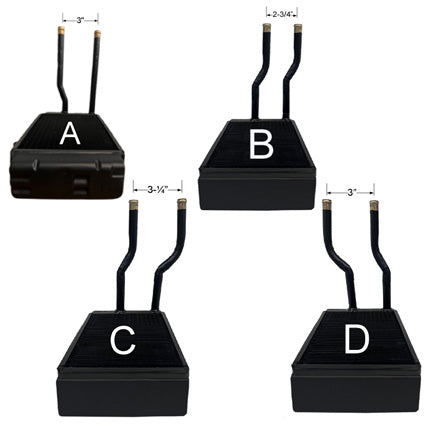

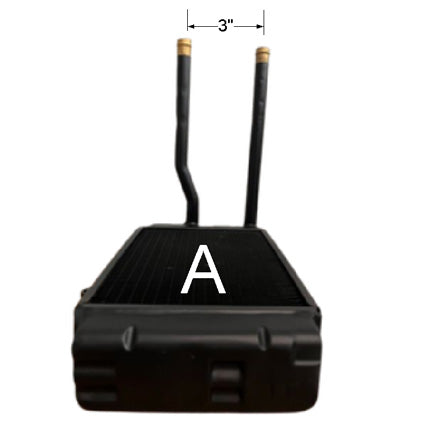

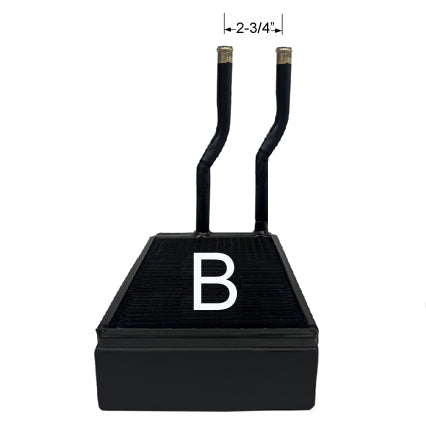

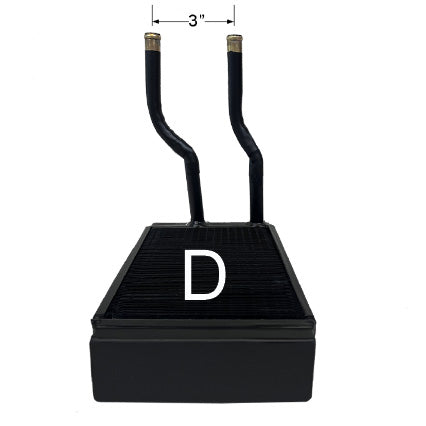

Tube designs vary so please please please compare your tubes when ordering.  We refer to them as Models A-D. Please confirm the tube path before ordering.

Did your aluminum heater core start leaking & removing your dash assembly again sounds like a nightmare?  We make our own copper cores and fabricate our own tanks so, naturally, we get asked to build custom heater cores or "small radiators." Some modern Fords leak like a sieve so we make a copper alternative.

Present Lead times.

Made in the USA.



We make to order. Please allow adequate time for us to build.

Build time estimates [November 2023]

Brass Model Ts 2 months

Black Model Ts FT 1-3 weeks - RT is 6 weeks

Model As 2-4 weeks

Heater cores 6 weeks

Common street rods 3.75 months

Tricky customs & restorations 4-4.5 months

We appreciate your patience as we continue to recruit and train new fabricators.
