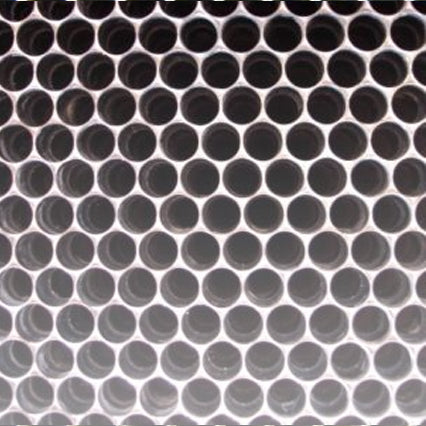

flared round tube cartridge core

Round Cartridge Cores

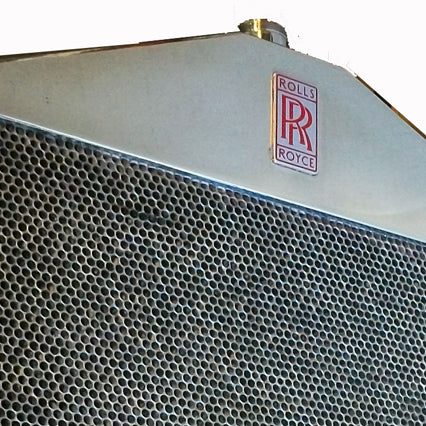

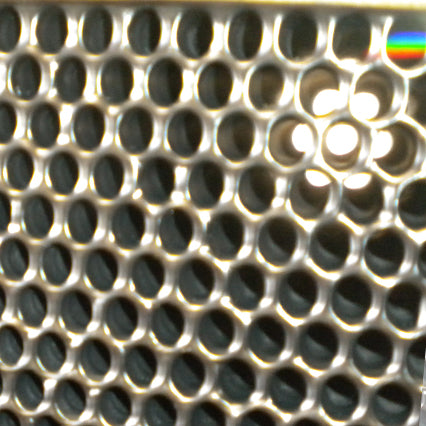

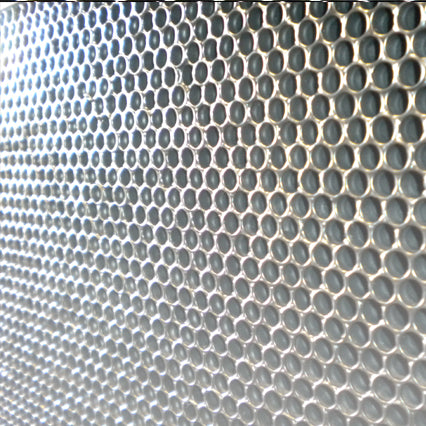

Cartridge cores are constructed when flaring dies are driven into copper or brass tubes.  Core faces are dipped to seal the water from the air.  They are occasionally confused with film cores and frequently referred to as "honeycomb cores" but the patterns are varied and curves, angles and steps can be created.  Please contact us with the year, make, model and dimensions of the core.  Sketches and core pencil rubbings can be used to best match the correct core to your vehicle.  We'll cost out the core.


We make to order. Please allow adequate time for us to build.

Build time estimates [Feb 2025]

Brass/Black Model Ts

Our longstanding foundry (supplier) closed and all production was shifted to a neighboring foundry.  Apparently many of the closed foundry's workers were ineligible for rehire by the new foundry due to more aggressive immigration enforcement and the union has no employees to provide.  As of 2-20-25, we should receive castings in March 2025 and can resume production then.

In the interim, we have been working with our one-off foundry to have pattern boxes made and these are trickling in in smaller batches and we will produce what we can.

Model As 5-6 weeks

Heater cores ~6 weeks

Model A and 32 Ford Street rods 6 weeks

Common street rods ~12-15 weeks

Tricky customs & complicated restorations ~16 weeks months

We appreciate your patience as we continue to recruit and train new fabricators and manage the labor shortfall our country has been experiencing.
